A study of L1 phonetic drift in the voice onset times of Korean learners of English with long L2 exposure^*

Languages in the world are common to have a voicing contrast in stops. The phonological voicing contrast is phonetically realized as prevoiced, voiceless unaspirated, and voiceless aspirated stops. In order to separate the stops categories of a number of languages, Lisker & Abramson (1964) introduced three stages in VOT, voicing lead (negative VOT) for prevoiced stops, short-lag voicing (positive VOT) for voiceless unaspirated stops, and long-lag voicing (positive VOT) for voiceless aspirated stops. His classification accounted well for two- to four-category languages. When stops have a three-way contrast, they are categorized mostly in terms of voicing and aspiration: “voiced”, “voiceless unaspirated” or “aspirated” in the languages of the world (e.g., Keating, 1984; Ladefoged & Maddieson, 1996; Lisker & Abramson, 1964). Korean stops, however, are known to be cross-linguistically atypical in that they have a three-way contrast where they are all voiceless in phrase-initial position. VOT has been well-documented as a primary cue to contrast stops across the world’s languages. However, it is not good enough to separate the three Korean categories (Cho et al., 2002; Han & Weitzman, 1970; Lisker & Abramson, 1964).

Different from the world's languages, Korean is the only language that does not have a voicing contrast and that reportedly has three kinds of voiceless stops. They are usually described as aspirated /p^h t^h k^h/, tense or fortis /p^* t^* k^*/, and lax or lenis /p t k/. All Korean stops are phonetically voiceless, except that lax stops voice intervocalically under certain prosodic conditions (Jun, 1993). In addition, according to the traditional approach, there is a consonant-tone correlation in that fortis consonants are correlated with High tone whereas lenis consonants are correlated with Low tone. This kind of correlation is not common but Korean-specific. in addition, the phonetic behaviors of the voiceless lax stop are very hard to be accounted for why they become heavily aspirated and how they obtain a Low tone. In addition, the early acquisition of the tense stop is also a mystery. Along with the tradition approaches, so many Korean-specific phonetics and phonology are required but may issues still remain unsolved. Arguing against that Korean does have an unusual phonology, Kim & Duanmu (2004) propose a voicing-aspiration system where underlyingly “tense” stops are regular voiceless unaspirated, and “lax” stops are regular voiced stops (see also Kim, 2000). With this proposal, a number of issues are resolved: the consonant-tone correlation is another case of voiceless-high and voiced-low and the phonetic behaviors of lax and tense stops are also accounted for (see Bang et al., 2018; Kang, 2014; Silva, 2006 for different proposals). Under the theory of standard tonogenesis, /d/ becomes [t^h] leaving a low tone (e.g., [t^hál] ‘mask’ vs. [t^hàl] ‘moon’). This explanation can account for why lax stops are correlated with low tones and why they become heavily aspirated (see Kim, 2014 for more discussion). Therefore, to account for a tonogenetic-like sound change in Korean, the role of the “lax” category is crucial. The issue of how Korean stops and tones should be analyzed still remains controversial. Whatever phonological assumptions are, it is very important to pay more attention to the role of the lax stop in sound change.

Numerous investigations have explored the precise phonetic characteristics of the three Korean stops. Among them, the summary of mean VOT values for each stop type is presented in Table 1 where, on average, VOTs are shortest (about 10-15 ms) for Korean tense stops, longer (30-71 ms) for lax, and longest (68-115 ms) for aspirated. At the same time, despite systematic mean differences, VOT values for individual tokens of lax and tense stops, and to a lesser extent lax and aspirated stops, overlap (Cho et al., 2002; Han & Weitzman, 1970; Kim, 1965; Kim, 1995; Lisker & Abramson, 1964). This trend still holds for present-day Korean stops except that, instead of the overlap between the lax and tense stop, there is a complete or partial VOT merger between the lax and aspirated (Kang & Guion, 2008; Kim, 2014, 2017; Oh, 2011; Silva, 2006). The diachronic change on VOT shift is presented well in Table 1 in which the mean VOT difference between the lax and aspirated stop (VOT_asp-lax) has decreased from 77 ms to 5 ms.

Table 1 presents that, overall, VOTs for tense stops are stable from 11 ms to 21 ms whereas those for lax and aspirated stops are not. VOTs for the aspirated category are getting shorter from 115 ms to 70 ms. In contrast, VOTs for the lax category in recent studies has become twice as long as before (30 ms vs. 71 ms).

The VOT shift for Korean stops has been synchronically documented in terms of various socio-phonetic factors such as age, gender, dialect, speech rate, L2 proficiency, and word-frequency (Bang et al., 2018 for word-frequency; Choi, 2002; Cho et al., 2002; Kang & Guion, 2008; Kim, 2011 for L2 proficiency; Lee & Jongman, 2012 for dialect; Oh, 2009 for speech rate; Oh, 2011 for gender; Silva, 2006 for age). For the factor “age”, this change is more advanced in younger speakers’ speech than in older speakers’ speech. Since Silva (2006), numerous studies have shown that older speakers tend to maintain a three-way VOT categorization (tense<lax<aspirated) whereas younger speakers tend to show a two-way VOT categorization (tense<lax=aspirated) (see also Kang & Guion, 2008 and among others). With respect to the effect of gender on VOT, the VOT merger is more robust in female speakers’ speech than in male speakers’ speech (Kang & Nagy, 2016; Kim, 2014, 2017; Oh, 2011; and many others). For the effect of dialect on VOT, the merger is more advanced in Seoul dialect than in non-Seoul dialects (Choi, 2002; Kang & Han, 2013; Lee & Jongman, 2012; Oh & Yang, 2013). Taken all aforementioned factors into consideration together, young female Seoul speakers are found to be the most active adopters or propagators in sound change. Besides the effect of age, gender, and dialect, it is also reported that the change is more advanced in proficient L2 English speakers than non-proficient speakers (Kim, 2011), more advanced in more fast speech than in slow speech (Oh, 2009), and more advanced in frequent words than in non-frequent words (Bang et al., 2018). Compared with the factors of age, gender, and dialect, however, these factors are not stable because of speaker variations. Kim (2017) reports that there are huge inter- and intra-speaker variations on VOT that the VOT differences were remarkably huge even among young male and female Seoul speakers in the same generation. This suggests that VOTs for lax and aspirated stops are not stable and are synchronically varied.

With respect to the VOT merger in sound change in Korean, this is a follow-up experiment of Kim’s (2014, 2017) with different speakers in which native Korean speakers with no L2 exposure participated in Kim (2014) and those with short L2 exposure participated in Kim (2017). This study exclusively examines VOTs of Korean stops produced by Korean learners of English with high language proficiency and long L2 exposure to assess whether their VOTs between lax and aspirated stops are being merged and, if any, what types of stops are being changed. The results of the present study are compared with those of Kim’s (2014, 2017).

Thirteen Korean speakers (seven male and six female), studying at a university in the United states, participated. At the time of testing, they all had resided in the mid-western area of the U.S.A approximately for more than three years to ten years as presented in Table 2.

They were all university students at a college. The mean age was 23 years, 7 months and the individuals ranged from 20 years, 5 months to 33 years, 6 months. Since most of them were born and had grown up in Seoul (the capital city of Korea) or the Gyeonggi area (near Seoul), they were purely native Korean speakers and used the standard dialect of Seoul Korean. They came to the United States after their puberty and one female speaker who came to the US at the age of 13. According to their self-reported questionnaires and interviews, they all were very fluent in English and evaluated as advanced Korean learners of L2 English (i.e., High proficiency). They could communicate with native speakers of English with confidence and comfort. None of speakers had any history of speech pathology or phonetic training.

For a comparative purpose, the same speech materials as in Kim (2014) were used in this study. Eighteen monosyllabic Korean words were constructed with a balanced list of the three stop types (lax, aspirated, and tense) and the three places of articulations (labial, alveolar, and velar) followed by a vowel /a/ context. The syllable type was either CV or CVC where the final coda was /t/ or /k/ (a neutralized unreleased stop). All words were real words, as presented in Table 3.

In order to record the target words in a constant prosodic environment, they were recorded in the carrier sentence [igə ______ hasεjo] “Say this ______” where the words were located in phrase -initial position. In the position, the target words were expected to be fully stressed and emphasized. Speech materials were presented in Hangul, the writing system of Korean.

Each of the speakers was recorded using a Shure (model SM 10A) head-mounted microphone and a Marantz digital recorder (PMD 670). The recordings were made in a sound-attenuated booth in the Phonetics Lab at a sampling rate of 44,100 Hz. The target words in carrier sentence were presented on a monitor in quasi-random order and were automatically popped up at a 3-second interval to control participants’ speech rate. The monitor connected to the computer was inside the lab but the computer itself was outside the lab to minimize background noise. Each speaker familiarized sentences and was asked to read the target words in a natural intonation. A total of 936 tokens (18 words×4 repetitions×13 speakers) were obtained for analysis. All recorded utterances were analyzed using Praat 6.0.37, a speech analysis program (Boersma & Weenink, 2018).

VOT was measured from the release burst of a stop to the onset of periodicity in the waveform (Lisker & Abramson, 1964). The onset of the vowel in the waveform was determined by the onset of the first full glottal pulse of the vowel as well as the pitch of the spectrogram. The onset of the voicing energy in the second formant shown in a time-locked spectrogram was used to help determine voicing onset in conjunction with the waveform. The onset of voicing (=vowel onset) was defined as the first and periodic pulse of a vocalic waveform that show features typical of a vowel.

The acoustic data obtained were statistically tested using repeated measures analysis of variance (RM ANOVA) in the context of a univariate context of a general linear model (SPSS/PASW, 2018). The main goal of the present study was to examine whether there is any main effect of stop type (i.e., aspirated, lax, and tense), place (labial, alveolar, and velar), gender (male vs. female), LOR, and individual speakers on VOT and whether there was any interaction effect between factors. Repeated measures ANOVA includes both “between” subjects effects (gender and speaker) and “within” subject effects (i.e., stop type and place). Their main and interaction effects were statistically analyzed at a 0.05 significant level. Post hoc tests were also run to answer the following questions: (i) whether any differences in pairs among three stop types, between gender, and places were significant, and (ii) whether any differences in pairs among individual speakers were significant. For statistical analysis, the VOT differences and speaker variability on sound change according to the three stop types were mainly focused.

For the pool data averaged across thirteen participants, results of univariate repeated measures (RM) ANOVA showed a main effect of stop on VOT [F(2, 933)=1,228.761, p<.0001]. Post hoc Tukey HSD multiple comparisons revealed that differences in each pair among the three stop types were statistically significant (p<.0001): VOT is longest (80 ms) for the aspirated stop, longer (64 ms) for the lax stop, and shortest (15 ms) for the tense stop (tense<lax<aspirated) (Figure 1).

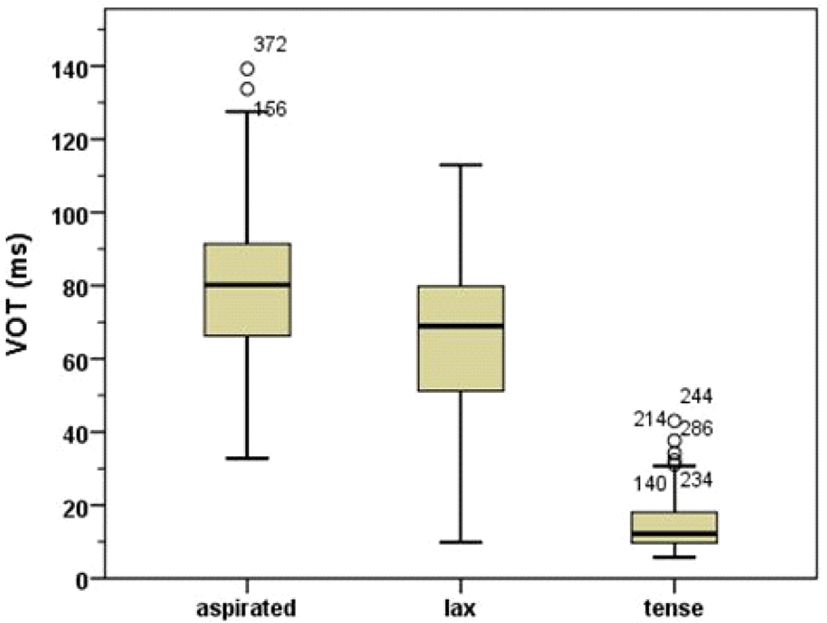

Figure 1. Mean VOT values of the aspirated, lax, and tense stop for the productions of 13 speakers (7 males and 6 females) with long L2 exposure for more than three years. Error bars indicate 95% confidence intervals.

Download Original Figure

Overall, the pooled results in Figure 1 correspond to Kim’s (2014, 2017) and previous findings in that, although the three stops statistically differed in terms of VOT, their VOT values between the aspirated and lax stop were largely overlapped in their ranges. The mean difference between the aspirated and the lax stop is getting shorter, as reported in Kang (2014), Kim (2014), Silva (2006), and among many others, supporting that stops in Korean undergo a sound change as an aspirated-lax merger on VOT. However, the present results are comparable to earlier findings on whether change in VOT affects only aspirated stops (i.e., VOT reduction from aspirated stops), rather than lax stops or both stop classes (Bang et al., 2018; Kang, 2014; Silva, 2006).

Silva (2006: 294) reports, “For younger speakers, the ‘innovators’, the mean VOT associated with tense and lax stops is nearly equal to that for the traditionalists, but the mean VOT for aspirated stops is markedly lower (69.7 ms vs. 94.0 ms).” His findings suggest that aspirated stops only undergo a VOT change. Bang et al., (2018: 137) also discuss, “During this sound change, VOT ‘reduction’ (over time) comes largely from aspirated stops, while lax stops show little change.” Different from their findings, however, Kim (2008, 2014, 2017) shows that not only aspirated stops but also lax stops undergo a sound change in terms of VOT. The present findings correspond to Kim’s in that both stops under a VOT change or shift: aspirated stops undergo a shortening process (115 ms to 80 ms) whereas lax stops undergo a lengthening process (30 ms to 64 ms) (see Table 1). That is to say, the change occurs for both aspirated and lax stops.

The effect of stop on VOT held well for that of place, as see in Figure 2. There was a main effect of place of articulation on VOT [F(2, 918)=95.829, p<.0001]. Post hoc Tukey HSD multiple comparisons showed that mean VOT values averaged across the three stops are significantly longest (62 ms) for the velar stop, intermediate (51 ms) for the alveolar stop, and shortest (46 ms) for the labial stop (labial<alveolar<velar) (Cho et al., 2002). There was also an interaction between stop type and place of articulation [F(4, 918)=3.842, p<.0001], indicating that the effect held well for each stop type. For each place of articulation, mean VOT values were longest for the aspirated, longer for the lax stop, and shortest for the tense stop, as clearly illustrated in the figure below.

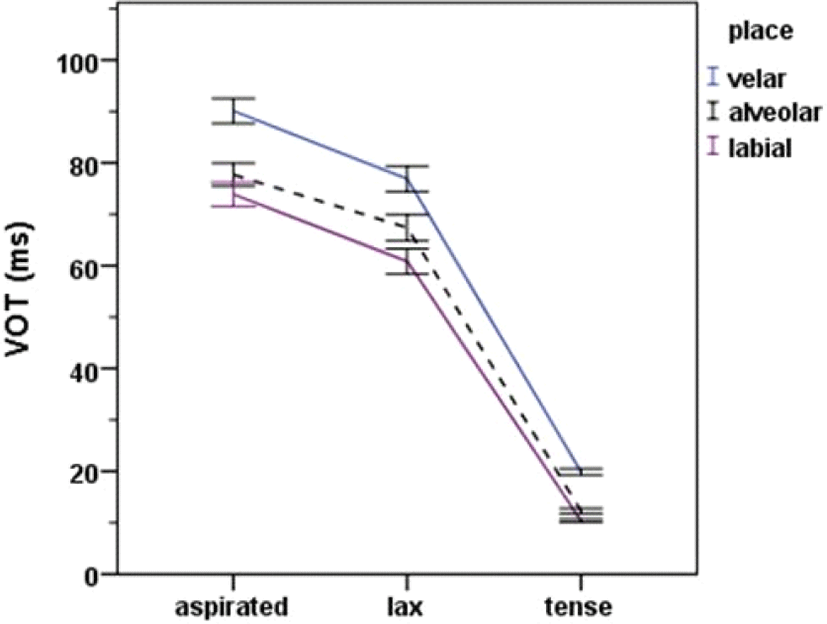

Figure 2. Mean VOT values of the aspirated, lax, and tense stop for the productions of 7 male and 6 female speakers. Error bars indicate 95% confidence intervals.

Download Original Figure

The VOT shift does not occur for all speakers’ speech materials as clearly shown below. There was also a main effect of gender on VOT [F(1, 930)=22.650, p<0.0001] and an interaction between stop type and gender [F(2,930)=38.132, p<.0001] on VOT. Mean VOTs for aspirated stops are significantly longer for male speakers than female speakers. In addition, the VOT merger between lax and aspirated stops are robust for female speakers but not for male speakers, as can seen in Figure 3 (see also Figure 4).

Figure 3. Mean VOT values of the aspirated, lax, and tense stop for the productions of male and female speakers. Error bars indicate 95% confidence intervals.

Download Original Figure

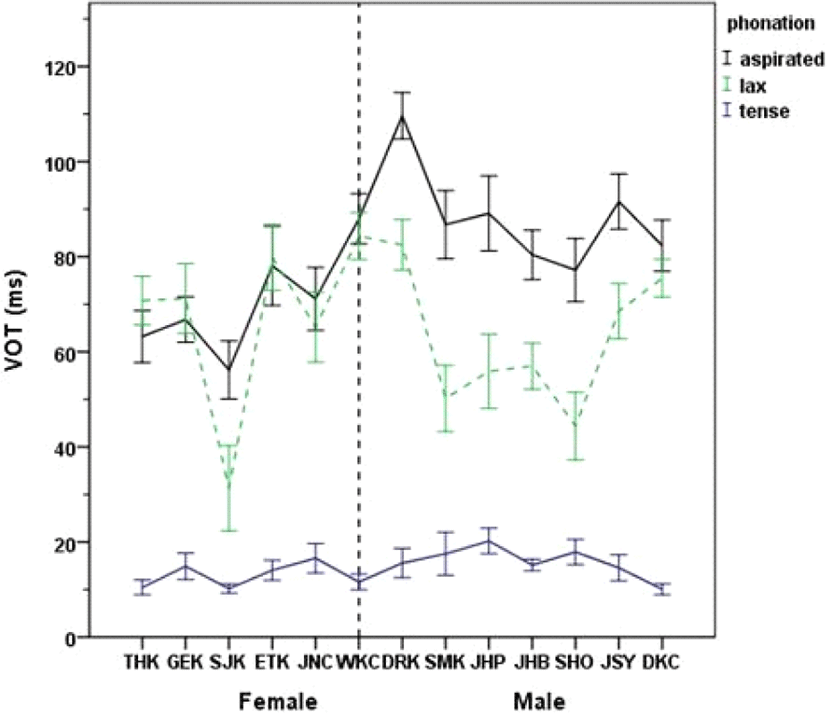

Figure 4. Mean VOT values of each stop type for the productions of 6 female (left) and 7 male (right) speakers. Error bars indicate 95% confidence intervals.

Download Original Figure

The effects of gender on VOT are analogous to Oh (2011) in that the VOT merger between lax and aspirated stops are much greater for female speakers than for male speakers. Out of six female, five speakers showed a statistical merger between lax and aspirated stops whereas, out of seven male, none of speakers showed a merger. Note that most of speakers are under or in their twenties. This suggests that the socio-phonetic factor “gender” can be more important than the factor “age.” This gender effect corresponds to that of Kim’s (2014, 2017). The results of stop, place, and gender on VOT are summarized in Table 4.

Overall, the group-normative data in Table 4 show that, despite systematic mean differences among the three stops in statistics, VOT differences between lax and aspirated stops are largely decreased showing a merger between the two stops. With respect to VOT, tense stops are well separated from either aspirated or lax stops whereas aspirated stops are not distinguished well from lax stops. Tense stops are always realized with short-lag voicing (M_tense= 15 ms (5.8 min.–43 max.)) while aspirated and lax stops both are realized with long-lag voicing (M_asp=80 ms (32.8 min.–139.2 max.); M_lax=64 ms (9.7 min.–113 max.)). The results on the effect of gender on VOT suggest that an apparent merger between aspirated and lax stops is still in progress among female speakers’ productions. Concerning the sound change of the Korean system, the results on VOT aggregated by stop, place, and gender partly correspond to previous findings such as Silva (2006), Oh (2011), Kim (2014, 2017). However, there were inter- and intra-speaker variations on VOT, as discussed below.

Considering the remarkable gender differences, it is especially worth considering individual speakers’ data. Figure 4 shows mean VOT values of the three stops for each speaker separately. The huge individual variations correspond to Kim’s (2017). A rather obvious point is that the absolute values of VOT vary with speakers, showing individual speaker variations. Statistical analysis confirmed significant differences among individual speakers [F(12, 897)= 32.788, p<.0001] and an interaction between stop and individual speakers on VOT [F(24, 897)=17.126, p<.0001].

In Figure 4, for all speakers, among the three stops, the productions of tense stops are very stable whereas the productions of both aspirated and lax stops are not. There are remarkable individual differences on VOT, heavily dependent on the factor “gender.” There are also intra-speaker variations on VOT even within the same gender. Note that, out of six, one female speaker SJK only shows a clear-cut three way stop system. In contrast, out of seven, only one male speaker, DKC, shows a merger-like pattern of aspirated and lax stop. Synchronic variations on sound change are robust between males and females: male speakers maintain a traditional three-way contrast on VOT while female speakers do not. Compared with male speakers, female speakers tend to produce shorter VOT for aspirated stops but longer VOT for lax stops as evidence of a sound change. This shortening and lengthening process made the two stops be merged. The merger is statically supported, as presented in Table 5.

Taken the individual data in Figure 4 and Table 5 into consideration together, VOTs in the production of the three Korean stops are different from one speaker to the other in the following three aspects. Firstly, does a speaker show an aspirated-lax merger or not? In Table 5, out of thirteen, five speakers statistically have the merger and they all are females (F1, F2, F4, F5, F6). For speaker F1, F2, and F6, they produced lax stops even longer than aspirated counterparts. We can say that these participants, who show the complete merger, are considered as “radical innovators” in sound change. Compared to the female individuals, male speakers tend to maintain a three way contrast in terms of VOT. Thus, they are “conservative traditionalists” in sound change (see also Oh, 2011). From Kim’s (2014) findings, we can expect that these male speakers do not develop a tonal contrast in the vowel. Overall, female speakers truly undergo a sound change but male speakers do not.

Secondly, individuals can differ which stops undergo a phonetic change. Consider the reference point from previous findings on VOT. Lisker & Abramson (1964) report that mean VOT for the aspirated stop is 103 ms (M_aspirated=103 ms) and mean VOT for the lax stop is 30 ms (M_lax=30 ms). When comparing the current results with Lisker & Abramson’s, it is clear that overall mean VOT for the aspirated stop is much shorter from 103 ms to 80 ms whereas mean VOT for the lax stop is much longer from 30 ms to 64 ms.

For aspirated stops, there is a shortening process. As presented in Table 6, speaker F1, F2, F3, F4, F6, and M5 produced aspirated stops with relatively shorter VOTs than the rest speakers. Note that speaker M1, M2, M3, and M6 maintain relatively long VOTs. In contrast, there is a lengthening process for the lax stop. Speaker F1, F2, F4, M1, and M7 produced lax stops with relatively longer VOTs than the rest speakers. For these speakers, the merger did not occur because, unlike lax stops, aspirated stops did not undergo a sound change. To sum up, taking group mean VOTs (80 ms) as a reference point in consideration, six out of thirteen speakers (e.g., F1, F2, F3, F4, F6, and M5) show a shortening process on VOT for the aspirated stop. In contrast, eight out of thirteen speakers (e.g., F1, F2, F4, F6, M1, M6, and M7) produced lax stops with relatively longer VOTs (above group mean 64 ms). Four speakers undergo both lengthening and shortening processes.

Once stops undergo a sound change, the process of aspirated-shortening and/or lax-lengthening seems to occur simultaneously. When there is only one process, the merger does not occur. For example, female speaker F3 had an aspirated-shortening process (56 ms) but she did not have a lax-lengthening process (31 ms). Unless a lax-lengthening process occurs, she will tend to preserve a contrast instead of a merger. Similarly, speaker M1 took part in the lax-lengthening process (82 ms) but he did not participate in the aspirated-shortening process (110 ms). As a result, his stop system did not undergo a merger. It is very important to capture the essence of the sound change in the Korean stop system. Because of this shortening or lengthening process among the three stops, the overall VOT duration of the three stops is different from one speaker to the other. Post hoc Tukey multiple comparisons among the three stops showed three statistical groupings in duration, as presented in Table 6.

Thirdly, individuals’ productions on VOT are slightly different depending on their residential years. Figure 5 shows mean VOT values of the three stops in terms of speakers’ L2 exposure period.

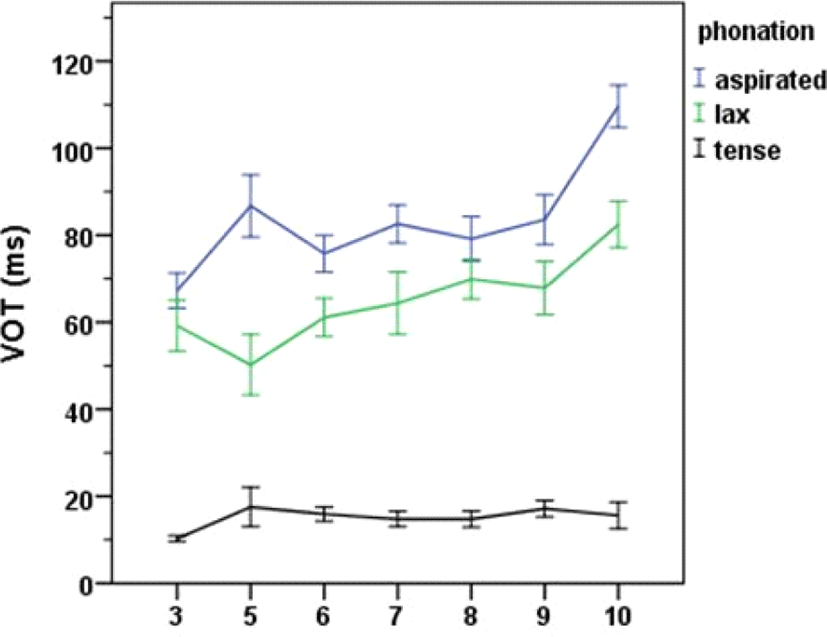

Figure 5. Mean VOT values of each stop type according to L2 exposure period from 3 to 10 years. Error bars indicate 95% confidence intervals.

Download Original Figure

There was a main effect of L2 exposure on VOT [F(6, 915)= 23.116, p<0.0001] and an interaction between stop and L2 exposure on VOT [F(12, 916)=7.276, p<.0001]. Post hoc Tukey multiple comparisons among the three stops revealed two statistical subsets, as presented in Table 7. The overall VOT is significantly longer for a 10-year participant than the rest ones.

Taken Figure 5 and Table 7 together, individuals may differ from one to the other depending on their L2 exposure period. Among speakers, one five- and ten-year speaker conservatively maintain the three-way pattern. All the other speakers tend to undergo a phonetic merger. Recall that one of the issues in the current study is whether there are any phonetic changes in one’s native language due to the influence of another language (L2). Based on the results in Figure 5, it seems to hard to tell that the phonetic change (in particular VOT) in the L1 Korean system is purely due to the influence of L2 English. The current results on the effect of L2 exposure correspond to Kim’s (2017) findings. If there is some influence of language contact in the L1 system, we may expect that the longer their L2 exposure, the more the merger. Note that a ten-year speaker tend to maintain the most clear-cut three way stop contrast in VOT. The effect of L2 exposure on VOT seems to be marginal and linguistically unimportant. Since the number of participants were neither balanced nor enough to be more than three for each year, it is hard to obtain a correlation effect between stop and L2 exposure. Further study may be necessary to make the claim.

Finally, individuals differently produced the same tokens. For example, speaker F3 produced stops inconsistently. For the token [pat] ‘field’ of a lax stop, she repeated it in the range of 9 ms to 80 ms. The inconsistent VOT values are due to her recording style of target words. When VOT became much shorter than normal, the target words were produced without some pause between the carrier sentence. She often located them in a phrase-medial position rather than a phrase-initial position. Remarkable inter-speaker differences show some gender dependency. Similar to Oh’s (2011) and Kim’s (2014, 2017) findings, female speakers tend to show more merger than male speakers, as illustrated in Figure 3 and 4. Let us compare the results speaker THK (F1) with those of speaker SMK (M2). Except for gender, their language background were almost the same: They both were graduate students studying in America. They were in their twenties (23 vs. 20) and they grew up in Seoul (i.e., same dialect). In addition, they had lived in the USA for about three years (same length of residence). In spite of their similar language back ground, their productions of Korean stops were remarkably different: speaker F1 showed a complete merger while speaker M2 didn’t. The female speaker undergoes a sound change whereas the male speaker is not. Similar phenomena can be observed from other speakers’ productions.

Taken together, inter-speaker and intra-speaker differences are shown to be spectacular. The within-speaker variability in females appears to be high. Note that speakers employed in the present study were from the same Seoul (including Gyeonggi) dialects and the same generations in their twenties and thirties. In addition, their l2 exposure period was controlled between three to ten years, and speech rate was also controlled. Despite the fact that such socio-phonetic factors as age, dialect, L2 exposure, and even speech rate were controlled, there were huge inter-speaker and intra-speaker variations on the merger and duration, indicating a synchronous speech sound change. It seems clear that VOTs for the production of stops are internally changing for each speaker. Hence, we can say that individual speakers play an important role in taking a part in sound change of their native system.
